HPL220 UVB Irradiance meter
HPL220 UVB Irradiance meter
Couldn't load pickup availability
HPL-220 series UVB ultraviolet irradiator is a professional instrument for measuring UVB band ultraviolet irradiance, which is mainly used in the ultraviolet intensity test of medical skin treatment lamp.
Characteristic:

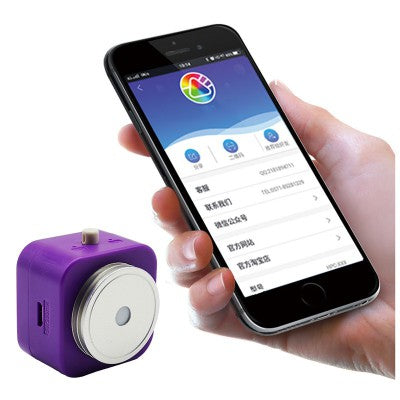

1. Wireless Bluetooth split probe, OLED display host, mobile app;
2. The digital probe has no shift error, is not easy to be interfered, and has high measurement accuracy;
3. Spectral response: 280nm-315nm;
4. Suitable for 297nm, 311nm and other UVB light source strength and energy testing
5. Range: 0.01 - 200000 μ w / cm2;
UVB is known as the middle wave erythema effect ultraviolet ray, it can promote the mineral metabolism and vitamin D formation in the body. Long term exposure will make the skin tan and molt, and be used for UV health lights, medical physiotherapy lamps, plant growth lamps, fluorescent lamps, aging experiments, etc.
The spectral response range is 280nm-315nm, which is suitable for 297nm, 311 wavelength UVB light source measurement.
一 UVB Parameters of UV radiometer
|
Model |
UVB |
|
Measurement accuracy |
±8% |
|
Sampling rate |
5 times / second |
|
Test light hole diameter |
￠6mm |
|
Probe size diameter |
￠30 mm |
|
Size |
38*38*22mm |
|
Weight |
50g |
二 UVB Spectral response curve of UV radiometer
三 Model list
|
|
Model |
Application |
Unit |
Measurement range |
Wavelength range |
|
|
UVC |
HPL200UVC |
UV Germicidal lamp Intensity and energy test λp =254nm |
uW/cm2、W/m2 |
mJ/cm2 |
0.1-200,000 uW/cm2 |
245-280nm |
|
HPL210UVC |
||||||
|
HPL220UVC |
||||||
|
HPL200UV0 |
UVCLED Germicidal lamp Intensity and energy test λp =275nm |
uW/cm2、W/m2 |
mJ/cm2 |
0.1-200,000 uW/cm2 |
200-400nm |
|
|
HPL210UV0 |
||||||
|
HPL220UV0 |
||||||
|
HPL200UV1 |
UVCLED Germicidal lamp Intensity and energy test，λp =275nm |
uW/cm2、W/m2 |
mJ/cm2 |
0.01-20000 mW/cm2 |
200-400nm |
|
|
HPL210UV1 |
||||||
|
HPL220UV1 |
||||||
|
UVB |
HPL200UVB |
Medical skin treatment lamp UV Intensity test，λp =311nm |
uW/cm2、W/m2 |
mJ/cm2 |
0.1-200,000 uW/cm2 |
280-315nm |
|
HPL210UVB |
||||||
|
HPL220UVB |
||||||
|
UVA |
HPL200UVA |
UV curing, High pressure mercury lamp Intensity and energy test，λp =365nm< |
uW/cm2、W/m2 |
mJ/cm2 |
0.1-200,000 uW/cm2 |
350-380nm |
|
HPL210UVA |
||||||
|
HPL220UVA |
||||||
|
HPL200UV2 |
UV curing, UVALED Intensity and energy test of surface light source，λp=395nm |
uW/cm2、W/m2 |
mJ/cm2 |
0.01-20000 mW/cm2 |
340-420nm |
|
|
HPL210UV2 |
||||||
|
HPL210UV2 |
||||||
|
HPL200UV3 |
UV curing, UVLED Intensity and energy test of point light source，λp=395nm |
uW/cm2、W/m2 |
mJ/cm2 |
0.01-20000 mW/cm2 |
340-420nm |
|
|
HPL210UV3 |
||||||
|
HPL220UV3 |
||||||
|
HPL-200 series includes Android mobile app Bluetooth connection； |
||||||
