Hoptek

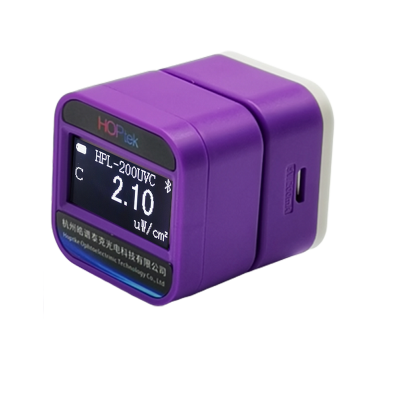

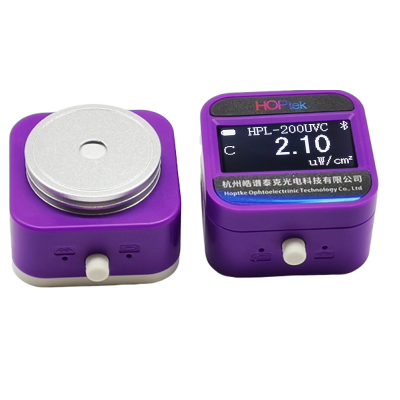

HPL220 UVC Irradiance meter
HPL220 UVC Irradiance meter
Couldn't load pickup availability
Hpl-220 series UVC ultraviolet irradiance meter is also called UV intensity meter. Widely used in hospitals, centers for disease control, pharmaceutical factories, food and Drug Administration and other fields of low-pressure mercury lamp ultraviolet intensity measurement.
UVC wave band in ultraviolet has the function of sterilization and disinfection, so it is also called short wave sterilization ultraviolet. The ultraviolet sterilization lamp emits UVC short wave sterilization ultraviolet. The ultraviolet radiation meter of germicidal lamp is used to measure the intensity of UVC light source. It is a portable UV irradiator of UVC germicidal lamp without protective equipment.
一 UVC Parameters of UV radiometer
|
Model |
UVC |
|
Measurement accuracy |
±8% |
|
Sampling rate |
5 times / second |
|
Test light hole diameter |
￠6mm |
|
Probe size diameter |
￠30 mm |
|
Size |
38*38*22mm |
|
Weight |
50g |
二 UVC Spectral response curve of UV radiometer
三 Model list
|
|
Model |
Application |
Unit |
Measurement range |
Wavelength range |
|
|
UVC |
HPL200UVC |
UV Germicidal lamp Intensity and energy test λp =254nm |
uW/cm2、W/m2 |
mJ/cm2 |
0.1-200,000 uW/cm2 |
245-280nm |
|
HPL210UVC |
||||||
|
HPL220UVC |
||||||
|
HPL200UV0 |
UVCLED Germicidal lamp Intensity and energy test λp =275nm |
uW/cm2、W/m2 |
mJ/cm2 |
0.1-200,000 uW/cm2 |
200-400nm |
|
|
HPL210UV0 |
||||||
|
HPL220UV0 |
||||||
|
HPL200UV1 |
UVCLED Germicidal lamp Intensity and energy test，λp =275nm |
uW/cm2、W/m2 |
mJ/cm2 |
0.01-20000 mW/cm2 |
200-400nm |
|
|
HPL210UV1 |
||||||
|
HPL220UV1 |
||||||
|
UVB |
HPL200UVB |
Medical skin treatment lamp UV Intensity test，λp =311nm |
uW/cm2、W/m2 |
mJ/cm2 |
0.1-200,000 uW/cm2 |
280-315nm |
|
HPL210UVB |
||||||
|
HPL220UVB |
||||||
|
UVA |
HPL200UVA |
UV curing, High pressure mercury lamp Intensity and energy test，λp =365nm< |
uW/cm2、W/m2 |
mJ/cm2 |
0.1-200,000 uW/cm2 |
350-380nm |
|
HPL210UVA |
||||||
|
HPL220UVA |
||||||
|
HPL200UV2 |
UV curing, UVALED Intensity and energy test of surface light source，λp=395nm |
uW/cm2、W/m2 |
mJ/cm2 |
0.01-20000 mW/cm2 |
340-420nm |
|
|
HPL210UV2 |
||||||
|
HPL210UV2 |
||||||
|
HPL200UV3 |
UV curing, UVLED Intensity and energy test of point light source，λp=395nm |
uW/cm2、W/m2 |
mJ/cm2 |
0.01-20000 mW/cm2 |
340-420nm |
|
|
HPL210UV3 |
||||||
|
HPL220UV3 |
||||||
|

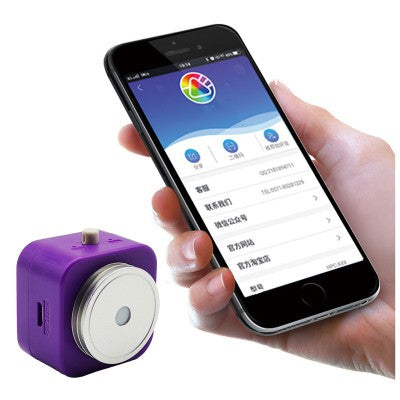

HPL-200 series includes Android mobile app Bluetooth connection； |
||||||
